Location : Home >> Products >> Packing machine

Side push ym-zx04

2020-07-14 11:42:08

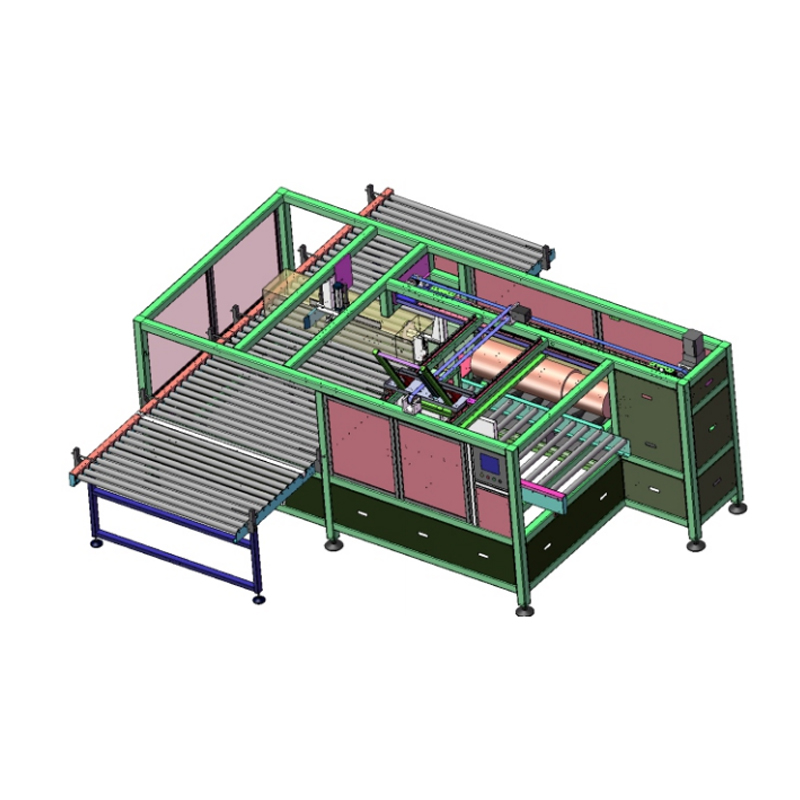

Side push ym-zx04
Detailed introduction:

Mechanical characteristics

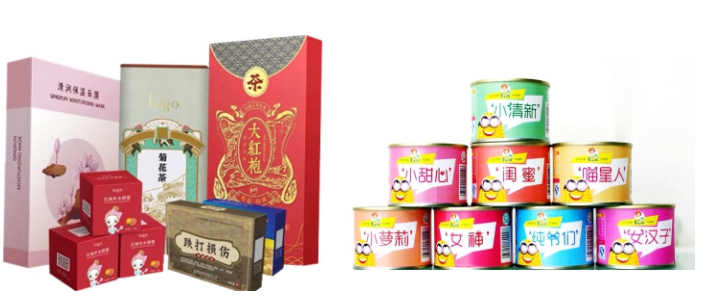

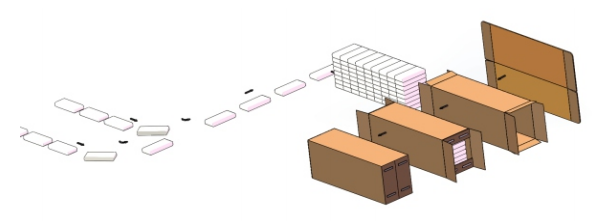

The packing machine is a kind of intelligent full-automatic packing machine, which uses high-speed distribution device to pack various containers, including plastic flat bottles (boxes), round bottles (boxes), irregular shaped bottles (boxes), glass bottles (boxes), round bottles (boxes), oval bottles (boxes), square cans and paper cans, etc., and also suitable for packing boxes with partition boards. After being arranged into a whole box arrangement from the front, it is put into the open carton. When the carton is turned 90 degrees, the carton will be discharged and sent to the sealing machine. The machine is controlled by p.l.c + touch screen. It is equipped with alarm and shutdown for lack of products, and safety device for no packing of products. This assembly line is convenient to operate, manage, reduce production personnel and labor intensity.

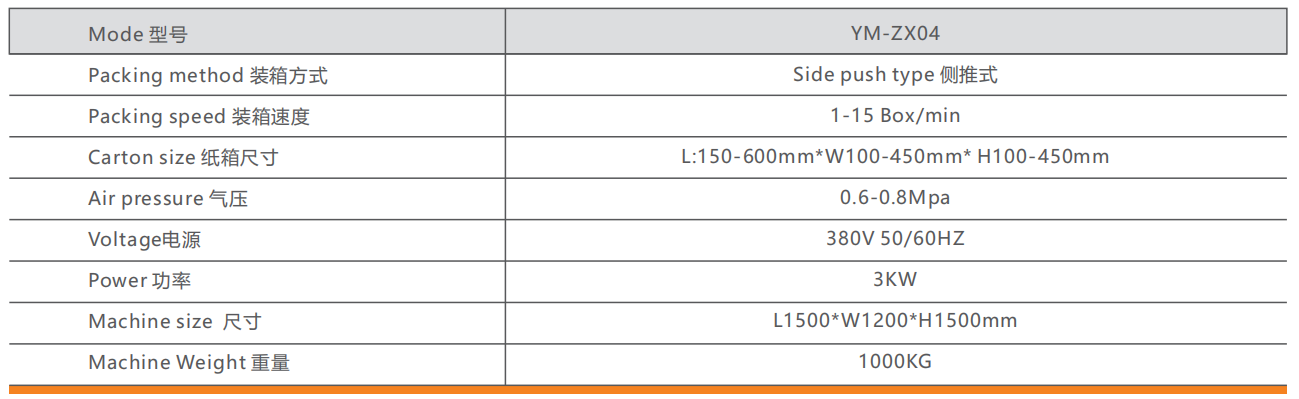

technical parameter
